EQUIPMENT MADE IN THE USA

General's Classic cylinder presses are built to provide years of consistent, trouble free performance at the highest production rates. The Classic prints heavy solid areas of color, fine line work, high-resolution reverse copy, and halftones . . . at speeds up to 3,250 i.p.h.

The General Masterfeed is easily adjustable from front to rear feed, and from sheet to stream feed. The three feed options provide for maximum versatility for feeding any flexible substrate.

Special attention was given to "Time Saving" operator controls and adjustments to provide for maximum productivity. Features such as the feedboard lift, 4-way Micro Adjustment System, and drop down delivery for quicker setups with less down time.

Where ink mileage and uniform deposit thickness are crucial, the General Clasic's full floating Air Squeegee automatically standardizes pressure of the line-contact print action. Its internal air chamber maintains even pressure all along the blade.

The Classic was designed and built by BecMar, the company that knows and cares about the General Press and the leader in providing quality parts, service and customer satisfaction.

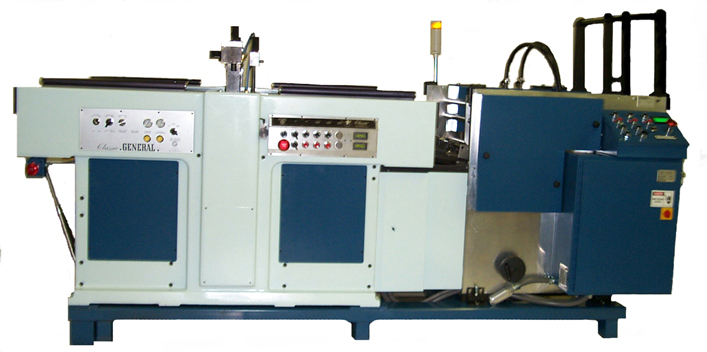

Classic General 22" x 40" Cylinder Screen Press with Continuous Stream Feeder



Classic General 28" x 40" Cylinder Screen Press with General Masterfeed Feeder



Video Coming Soon!

Key Benefits

Domestic parts and service, the latest technologies employed throughout, many options for faster output and operator friendly!!!!

The following chart will help in selecting the machine that is right for you

Specifications on Classic General cylinder press models

Model
30" Classic
40" Classic
45" Classic
52" Classic
Max sheet size
22" x 30"
28" x 40"
35" x 45"
38" x 52"
Max image size
21-1/4" x 30"
27-1/4" x 40"
34-1/4" x 45"
37-1/4" x 52"
Min sheet size
11" x 15"
14" x 20"
17.5" x 22.5"
19" x 26"
Screen OD
41" x 42"
51-1/4 x 47-1/2"
56" x 54-1/4"
63-1/2" x 58"
Gripper margin
3/4"
3/4"
3/4"
3/4"
Speed Range IPH
0-3250
0-3000
0-2600
0-2000
Approx. weight
4,100#
4,800#
5,900#
7,200#
OL Length
11'6"
12'6"
13'6"
14'
OL Width
5'
5'10"
6'4"
7'
OL Height
4'6"
4'6"
4'6"
4'6"
Drive motor
2 HP
2 HP
3 HP
3 HP
Feeder Vac
2.7 HP
2.7 HP
2.7 HP
2.7 HP
Cylinder Vac
1/2
1/2
1
1-1/2
Delivery Vac
1/2
1/2
1
1
Comp. Air rqd.
90 PSI
90 PSI
90 PSI
90 PSI
Electrical
220 VAC 3 PH
220 VAC 3 PH
220 VAC 3 PH
220 VAC 3 PH
