EQUIPMENT MADE IN THE USA

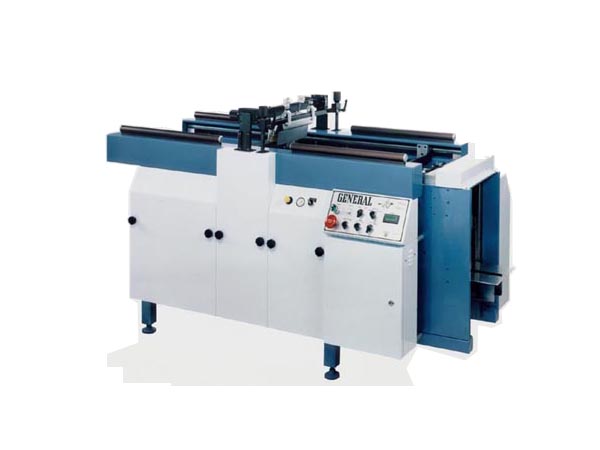

The General Pony Express has developed a devoted following of profit conscious printers that require high speed production, close tolerance registration, and fast set-ups.

This 4th generation press is ideal for printing heat transfers, decals, pressure sensitive labels, greeting cards, and P.O.P. displays. It also offers the best method of applying adhesive for flock and glitter.

The improved version of our popular General 11" x 17" Pony Express has been completely redesigned. Outstanding New Features include an improved General automatic Feeder with a motorized stock lift. Feed tapes that slow down at the guide position, for more precise registration. Improved Squeegee lift system with easily adjustable down pressure, positive flood control, and a high lift feature. Our new Micro adjustment system improves set-up times, and does not require any tools for locking.





click link below for video of
General 11D (Pony Express)

Key Benefits

Domestic parts and service, the latest technologies employed throughout, many options for faster output and operator friendly!!!!



Specifications on General Pony Press

Model
Pony Express
Max sheet size
11" x 17 "
Max image size
11" x 16 1/4 "
Min sheet size
6" x 9 "
Screen OD
17 3/8 " x 31 3/8 "
Gripper margin
3/4"
Speed Range IPH
0-4,000
Approx. weight
3,000#
OL Length
7'
OL Width
3'
OL Height
4'
Drive motor
1 HP
Feeder Vac
1/2 HP
Cylinder Vac
1/2 HP
Vacuum Delivery
1/2 HP
Electrical

220 VAC, 3 PH, 60 cycle
