MEECH AC STATIC ELIMINATOR

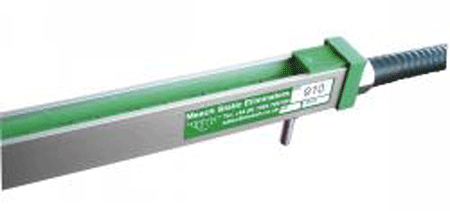

Model 910 AC Shockless Ionizing Bar
Meech AC Static Eliminator

Applications

Shockless design allows for thousands of applications throughout industry on sheets, webs and shallow objects or wherever there is concern of the operator coming into direct contact with the bar.

Specifications
Operating Voltage 7.0kV
Pin Energy 0.15 millijoules
Housing Anodized Aluminum Extrusion
Emitter Pins Stainless Steel Molded in Polypropylene
Overall Length 3" to 144"
Effective Length 2" less than overall length
Power Supply Model 1070 or 903

Options

  • Air Boost
  • Right Angle Cable Connector
  • Rear Mount Cable Connector
  • Bars can be run in a ladder configuration
  • Water resistant model available

The Model 910 incorporates a unique inductively coupled design, which achieves powerful static neutralization with complete shockproof operation. Compact design is rugged enough for most industrial applications.

  • Shockless Design
  • Install 1/4" to 3/4" from the object to be neutralized
  • 6' Armored and Shielded cable is supplied standard
  • Compact, easy to install and maintain





MODEL 910 AC SHOCKLESS IONIZING BARS
