MEECH AC STATIC ELIMINATOR

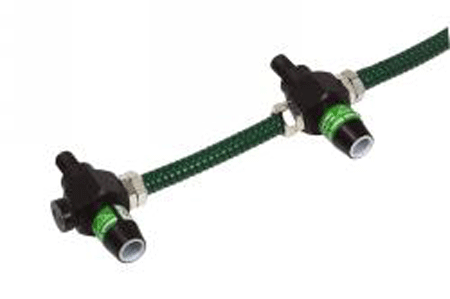

Model 940 Ionizing Air Nozzle
Meech AC Static Eliminator

Applications

Nozzles can be used for longer-range static neutralization, or to remove dust and other contaminants from small objects.

Specifications
Operating Voltage 4.5kV
Pin Energy 0.4 millijoules
Housing Machined Black Aluminum
Emitter Pins Stainless Steel in PTFE insert
Air Line Connection 1/8" BSP
Air Consumption 7.0 cfm at 30 psi
Cable To be ordered separately per requirements
Power Supply Model 1045 or 903



The Model 940 is a compressed air operated Ionizing Air Nozzle for pinpoint removal of static electricity and for the removal of static electricity and for the removal of electrostatically attracted dust and contaminants.

  • High Efficiency "HOT" design
  • Install independently or in a series



MODEL 940 AC IONIZING AIR NOZZLE
