MEECH AC STATIC ELIMINATOR

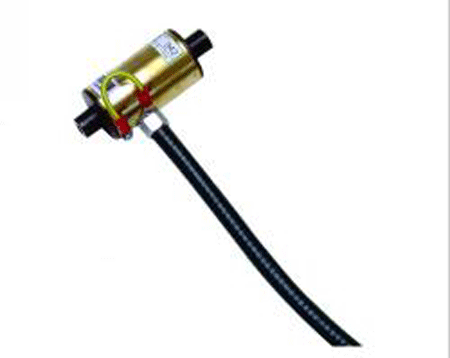

Model 942 AC In-Line Ionizing Air Nozzle
Meech AC Static Eliminator

Applications

In-Line ionizing nozzles are predominantly used in the sheet separation systems of offset presses, binders, die cutters and folders.

Specifications
Operating Voltage 5.5kV
Pin Energy 0.5 millijoules
Housing Anodized Green Aluminum
Air Line Connection For 1/2" ID flexible tubing
Air Consumption 7.0 cfm at 30 psi
Power Supply Model 1055 or 903





The model 942 is a low-pressure compressed air operated Ionizing Air Nozzle for removal of static electricity and electrostatically attracted dust and contaminants.

  • Ideally suited for the infeed of sheet fed offset presses
  • Install independently or in a series
  • To be mounted in an existing air line
  • 6' of HT cable is supplied standard



MODEL 942 AC IN-LINE IONIZING AIR NOZZLE
