MEECH AC STATIC ELIMINATOR

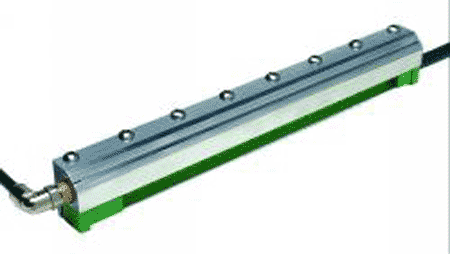

Model 957 AC Ionizing Air Curtain
Meech AC Static Eliminator

Applications

The laminar nature of the airflow gives the 957 excellent long-range static neutralization and dust removal capabilities.

Specifications
Operating Voltage 7.0kV
Pin Energy 0.15 millijoules
Lengths Available 3", 6", 12", 18" 24", 30", 35"
Construction Air Curtain-Machined Aluminum Model 910 - see 910 Specifications
Air Line Connection 1/4" quick disconnects
Air Consumption 4.3 scfm at 80 psi per inch of length
Power Supply Model 1070 or 903

Options

  • Model 920 "HOT" Bars available
  • Stainless Steel Curtains Available
  • Air Filters

The Model 957 creates a non-turbulent laminar beam of ionized air. This makes it a very effective static neutralizer from long ranges and an exceptional remover of dust and contaminants at a closer range.

  • Model 910 Shockless Bar incorporated in design
  • High Velocity Laminar Flow
  • Air consumption amplified 20:1
  • Quiet & Maintenance Free
  • 6' of HT cable is supplied standard



MODEL 957 AC IONIZING AIR CURTAIN
