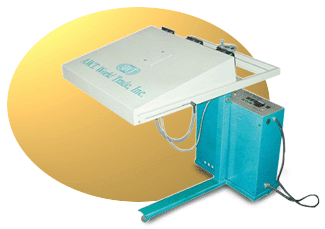

Designed for In-line flash curing at print stations of the Auto-Tex, American Centurian, and American X-press (can retrofit to other machines). The Q-Flash can replace a print head or the stand-alone unit can operate over an open pallet. The flash cure cycle is electronically synchronized with press production for the ultimate in effective, efficient operation and streamlined production.

As the indexer starts moving into the print position, The Q-Flash heating section shifts into the high power mode and reaches maximum temperature when the indexer reaches the next print position. The Q-Flash uses Quartz tubes that reach curing temperatures in just seconds. The variable speed blower provides even distribution of hot air over the printing pallet while printing and increases curing speed.

The Q-Flash switched to a low-power standby mode while the machine is not indexing. If the indexer stays in the print position longer than the dwell timer on the Q-Flash is set for, it automatically shifts to standby mode. When in standby mode, the airflow helps reduce pallet temperatures.

Upfront controls on the Q-Flash are easily accessed or the unit can be controlled from the Auto-Tex control panel. Sectional curing is available for flash curing smaller print areas. Adjustable head height ensures the proper distance between the Q-Flash and the pallet. Easy to maintain and change lamps.
