MODULAR GAS TEXTILE DRYER


SUPER TURBO "G" SERIES
Modular Gas Textile Dryer for plastisol and water based inks

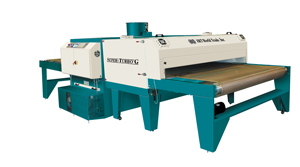

Super-Turbo G

Features:

  • Heat section: Quartz tubes preheat and hot jet air knives create a cost effective, reliable textile dryer for fast production.
  • Solid state independent temperature controls.
  • Heavy duty double wall chamber insulation keeps exterior of dryer cool and minimizes heat loss.
  • Variable speed conveyor drive with solid state controls from 2' to 60' feet per minute.
  • Quality Fiberlon conveyor belt guaranteed up to 500 degrees F (260 C).
  • High temperature adjustable chamber aperture doors conserve heat and allow easy access to the inside of dryer.
  • Easy to use control panel provides visual display of all heating operations.
  • Air filters are easy to access for cleaning or changing.
  • Gas burner and system is easily accessible for maintenance and cleaning.
  • Heavy duty and well insulated, the outside surface of al Super Turbo models stay cool to the touch. The heat is kept inside the dryer for high efficiency and to keep operation costs down.
  • Changeable air flow recirculation to fit your venting requirements with up to 90% recirulation.
  • Recirculation hoods move up to 90% of the air flow back through the dryer.
  • Full safety alarms to indicate constricted air flow from clogged filters or other failures.
  • Energy efficient power consumption.
  • Conveyor belt safety shut off system helps reduce belt deterioration.
  • All parts in need of maintenance, including filters, quartz tubes, and gas train are easy to access for servicing.
  • Easy belt tracking.
  • Digital belt speed readout.
  • Heat uniformity and stability throughout.





The Super Turbo G gas dryer is designed for efficient textile production. All plastisol and water based textile inks are cure-dried in the Super Turbo G at speeds up to 110 dozen pieces per hour — or more.

The design of this dryer includes a preheat chamber where the correct curing temperature of inks is quickly obtained. The preheat system can be gas fired (GHO models) for energy efficient production. The Super Turbo GHO has a quartz tube preheat zone. Heights of the preheat system inside the chamber are adjustable.

The second section uses jet air-knives and high volume hot air to fully cure the textile ink while removing evaporates through the exhaust system. Re-circulating hoods re-circulate up to 90% of the dry airflow through the system. This helps to reduce your energy consumption. Dye fumes from colored shirts are safely exhausted. The Super Turbo G and GHO dryers keep textile production running smoothly and efficiently. Ink is fully cured with excellent results.

Double insulated chambers allow air temperature to remain constant. This feature makes the dryer energy efficient with little heat loss.

Temperatures for the quartz tubes/preheat zone can be set independently of the jet air. If air flow becomes restricted the heating system shuts down automatically and a safety alarm sounds. This safety feature keeps the blowers operating, preventing problems from scorching and blower burnout. Unit has full filter system.

The fully modular construction makes expansion easy by simply adding heating or conveyor sections.

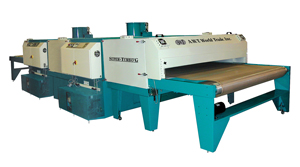

Super-Turbo G - Dual Chamber
